SettingsFLCAXI Class Reference

Global settings for the Axisymmetric - floating conductor (flc-axi/) numerical experiment. More...

#include <settings.hpp>

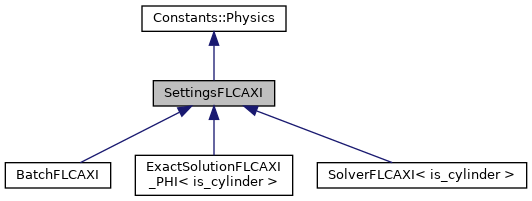

Inheritance diagram for SettingsFLCAXI:

Collaboration diagram for SettingsFLCAXI:

Public Attributes
const unsigned int	nr_threads_max = 0
	If greater than zero, limits the amount of threads used in the simulations.
const double	ep_0 = permittivity_fs
	The permittivity of free space.
double	a = 0.4
	The radius of the inner boundary of the problem domain.
double	b = 1.0
	The radius of the outer boundary of the problem domain.
double	d_1 = 0.6
	The radius of the inner interface between dissimilar materials.
double	d_2 = 0.8
	The radius of the outer interface between dissimilar materials.
const types::boundary_id	bid_in = 1
	The ID of the inner boundary of the problem domain.
const types::boundary_id	bid_out = 3
	The ID of the outer boundary of the problem domain.
const types::material_id	mid_1 = 1
	The material ID of the inner dielectric tube.
const types::material_id	mid_2 = 2
	The material ID of the outer dielectric tube.
const types::material_id	mid_3 = 3
	The material ID of the middle dielectric tube that represents the floating conductor.
const double	ep_1 = 32.0 * ep_0
	Relative permittivity of the inner dielectric.
const double	ep_2 = 4.0 * ep_0
	Relative permittivity of the outer dielectric.
const double	ep_3 = 1e9 * ep_0
	Relative permittivity of the middle dielectric that replaces the floating conductor.
const double	eps = 1e-12
	Two values in double format are considered to be equal if the absolute value of their difference is less than eps.
const bool	print_time_tables = false
	If set to true, the program will print time tables on the screen.
const bool	project_exact_solution = false
	If set to true, the program will project the exact solution. More...
const bool	log_cg_convergence = false
	If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv. More...
Public Attributes inherited from Constants::Physics
const double	pi
	The ratio between the circumference and the diameter of any circle, \(\pi\). More...
const double	c = 299792458.0
	The speed of light in free space, \(c\).
const double	permeability_fs = 4.0 * pi * 1.0e-7
	The permeability of the free space, \(\mu_0\).
const double	permittivity_fs = 1.0 / (std::pow(c, 2) * permeability_fs)
	The permittivity of the free space, \(\epsilon_0\).

Detailed Description

Global settings for the Axisymmetric - floating conductor (flc-axi/) numerical experiment.

Definition at line 25 of file settings.hpp.

Member Data Documentation

log_cg_convergence

const bool SettingsFLCAXI::log_cg_convergence = false

If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv.

The residuals are saved into the subdirectories of ./ Data/ directory.

Definition at line 132 of file settings.hpp.

project_exact_solution

const bool SettingsFLCAXI::project_exact_solution = false

If set to true, the program will project the exact solution.

The exact solution will be modeled on the same mesh and by the same finite elements that are used to model the solution. The projected exact solution will be saved in the vtu file next to the solution. This option can be useful when debugging.

Definition at line 123 of file settings.hpp.

---

The documentation for this class was generated from the following file:

• static/flc-axi/include/settings.hpp
