SettingsMWR Class Reference

Global settings for the Magnetic wire (mwr/) numerical experiment. More...

#include <settings.hpp>

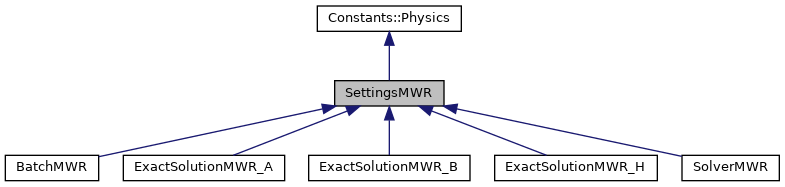

Inheritance diagram for SettingsMWR:

Collaboration diagram for SettingsMWR:

Public Attributes
const unsigned int	nr_threads_max = 0
	If greater than zero, limits the amount of threads used in the simulations.
const double	mu_0 = permeability_fs
	The permeability of free space.
const double	J_f = 1.0
	The current density.
const double	mu_r = 4.0
	The relative permeability of the material of the wire.
const double	mu = mu_r * mu_0
	The permeability of the material of the wire.
const double	d1 = 0.2
	The half-side of the square in the middle of the mesh.
const double	rd1 = sqrt(2) * d1
	The radius of the circle that encloses the square in the middle of the mesh.
const double	a = 0.5
	The radius of the wire.
const double	b = 1.0
	The radius of the outer boundary of the problem domain.
const double	A_0
	A constant used to compute the exact solution. More...
const types::material_id	mid_1 = 1
	The ID of the material inside the wire.
const types::material_id	mid_2 = 2
	The ID of the material outside the wire.
const types::boundary_id	bid = 1
	The ID of the boundary of the problem domain. The boundary ID is set in the geo files that are located in the mwr/gmsh directory.
const double	eps = 1e-12
	Two values in double format are considered to be equal if the absolute value of their difference is less than eps.
const bool	print_time_tables = false
	If set to true, the program will print time tables on the screen.
const bool	project_exact_solution = false
	If set to true, the program will project the exact solution. More...
const bool	log_cg_convergence = false
	If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv. More...
Public Attributes inherited from Constants::Physics
const double	pi
	The ratio between the circumference and the diameter of any circle, \(\pi\). More...
const double	c = 299792458.0
	The speed of light in free space, \(c\).
const double	permeability_fs = 4.0 * pi * 1.0e-7
	The permeability of the free space, \(\mu_0\).
const double	permittivity_fs = 1.0 / (std::pow(c, 2) * permeability_fs)
	The permittivity of the free space, \(\epsilon_0\).

Detailed Description

Global settings for the Magnetic wire (mwr/) numerical experiment.

Definition at line 25 of file settings.hpp.

Member Data Documentation

A_0

const double SettingsMWR::A_0

Initial value:

=
    0.25 * mu_0 * J_f * a * a * log(exp(mu_r) * (b * b) / (a * a))

A constant used to compute the exact solution.

Definition at line 80 of file settings.hpp.

log_cg_convergence

const bool SettingsMWR::log_cg_convergence = false

If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv.

The residuals are saved into the subdirectories of ./ Data/ directory.

Definition at line 128 of file settings.hpp.

project_exact_solution

const bool SettingsMWR::project_exact_solution = false

If set to true, the program will project the exact solution.

The exact solutions will be modeled on the same mesh and by the same finite elements that are used to model the solution. The projected exact solution will be saved in the vtu file next to the solution. This option can be useful when debugging.

Definition at line 119 of file settings.hpp.

---

The documentation for this class was generated from the following file:

• static/mwr/include/settings.hpp
