SettingsSSOLIAXI Class Reference

Global settings for the Axisymmetric - thin spherical coil (ssol-i-axi) numerical experiment. More...

#include <settings.hpp>

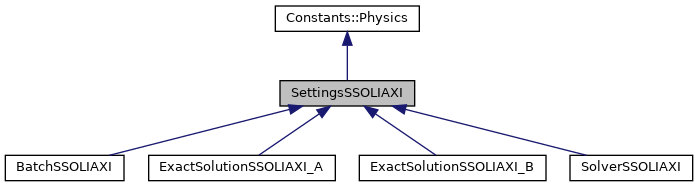

Inheritance diagram for SettingsSSOLIAXI:

Collaboration diagram for SettingsSSOLIAXI:

Public Attributes
const unsigned int	nr_threads_max = 0
	If greater than zero, limits the amount of threads used in the simulations.
const double	mu_0 = permeability_fs
	The permeability of free space.
const double	K_0 = 1.0
	A constant that defines the magnitude of the surface free-current density.
const double	d = 0.2
	The width of the rectangle in the middle of the mesh.
const double	rd = sqrt(2) * d
	The radius of the circle that encloses the rectangle in the middle of the mesh.
double	a = 0.5
	The radius of the coil.
double	b = 1.0
	The radius of the outer boundary of the problem domain.
const types::boundary_id	bid_infty = 3
	The ID of the curved section of the boundary of the problem domain. The boundary ID is set in the geo files that are located in the ssol-i-axi/gmsh directory.
const types::boundary_id	bid_axi = 1
	The ID of the straight section of the boundary of the problem domain. The boundary ID is set in the geo files that are located in the ssol-i-axi/gmsh directory.
const BoundaryConditionType	type_of_bc = Exact
	Switches between two boundary conditions options.
const double	eps = 1e-12
	Two values in double format are considered to be equal if the absolute value of their difference is less than eps.
const bool	print_time_tables = false
	If set to true, the program will print the time tables on the screen.
const bool	project_exact_solution = false
	If set to true, the program will project the exact solution. More...
const bool	log_cg_convergence = false
	If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv. More...
Public Attributes inherited from Constants::Physics
const double	pi
	The ratio between the circumference and the diameter of any circle, \(\pi\). More...
const double	c = 299792458.0
	The speed of light in free space, \(c\).
const double	permeability_fs = 4.0 * pi * 1.0e-7
	The permeability of the free space, \(\mu_0\).
const double	permittivity_fs = 1.0 / (std::pow(c, 2) * permeability_fs)
	The permittivity of the free space, \(\epsilon_0\).

Detailed Description

Global settings for the Axisymmetric - thin spherical coil (ssol-i-axi) numerical experiment.

Definition at line 31 of file settings.hpp.

Member Data Documentation

log_cg_convergence

const bool SettingsSSOLIAXI::log_cg_convergence = false

If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv.

The residuals are saved into the subdirectories of ./ Data/ directory.

Definition at line 122 of file settings.hpp.

project_exact_solution

const bool SettingsSSOLIAXI::project_exact_solution = false

If set to true, the program will project the exact solution.

The exact solutions will be modeled on the same mesh and by the same finite elements that are used to model the solution. The projected exact solution will be saved in the vtu file next to the solution. This option can be useful when debugging.

Definition at line 113 of file settings.hpp.

---

The documentation for this class was generated from the following file:

• static/ssol-i-axi/include/settings.hpp
