SettingsSSOLIII Class Reference

Global settings for the Spherical coil with magnetic core (ssol-iii/) numerical experiment. More...

#include <settings.hpp>

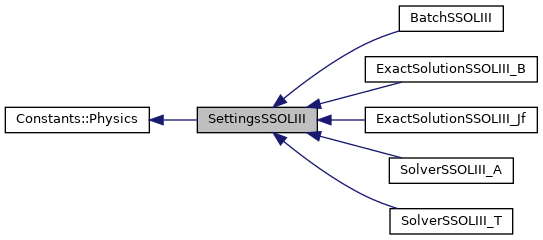

Inheritance diagram for SettingsSSOLIII:

Collaboration diagram for SettingsSSOLIII:

Public Attributes
const unsigned int	nr_threads_max = 0
	If greater than zero, limits the amount of threads used in the simulations.
const double	mu_0 = permeability_fs
	The permeability of free space.
const double	mu_r = 4
	The relative permeability of the material of the magnetic core.
const double	mu = mu_r * mu_0
	The permeability of the material of the magnetic core.
const double	d1 = 0.1
	The half-side of the cube in the middle of the mesh.
const double	rd1 = sqrt(3) * d1
	The radius of the sphere that encloses the cube in the middle of the mesh.
const double	a1 = 0.3
	The inner radius of the magnetic core.
const double	b1 = 0.6
	The outer radius of the magnetic core.
const double	a2 = 0.9
	The inner radius of the coil.
const double	b2 = 1.2
	The outer radius of the coil.
const double	d2 = 2.0
	The radius of the sphere that delineates the area in which the \(L^2\) error norms are computed.
const double	d3 = 3.0
	The radius of the problem domain.
const double	K_0 = 1.0
	A constant that defines the magnitude of the surface free-current density.
const double	H_0 = (1.0 / 3.0) * K_0 * (pow(b2, 2) - pow(a2, 2))
	The magnitude of the H-field induced by the coil at its center in absence of the magnetic core.
const types::material_id	mid_1 = 1
	The ID of the material outside the coil and the core, i.e., Jf=0 and mu=m_0.
const types::material_id	mid_2 = 2
	The ID of the material inside the core, i.e., Jf=0 and mu=mu_r*m_0.
const types::material_id	mid_3 = 3
	The ID of the material inside the coil, i.e., Jf>0 and mu=m_0.
const double	eps = 1e-12
	Two values in double format are considered to be equal if the absolute value of their difference is less than eps.
const bool	print_time_tables = false
	If set to true, the program will print time tables on the screen.
const bool	project_exact_solution = false
	If set to true, the program will project the exact solution. More...
const bool	log_cg_convergence = false
	If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv. More...
Public Attributes inherited from Constants::Physics
const double	pi
	The ratio between the circumference and the diameter of any circle, \(\pi\). More...
const double	c = 299792458.0
	The speed of light in free space, \(c\).
const double	permeability_fs = 4.0 * pi * 1.0e-7
	The permeability of the free space, \(\mu_0\).
const double	permittivity_fs = 1.0 / (std::pow(c, 2) * permeability_fs)
	The permittivity of the free space, \(\epsilon_0\).

Detailed Description

Global settings for the Spherical coil with magnetic core (ssol-iii/) numerical experiment.

Definition at line 25 of file settings.hpp.

Member Data Documentation

log_cg_convergence

const bool SettingsSSOLIII::log_cg_convergence = false

If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv.

The residuals are saved into the subdirectories of ./ Data/ directory.

Definition at line 152 of file settings.hpp.

project_exact_solution

const bool SettingsSSOLIII::project_exact_solution = false

If set to true, the program will project the exact solution.

The exact solutions will be modeled on the same mesh and by the same finite elements that are used to model the solution. The projected exact solution will be saved in the vtu file next to the solution. This option can be useful when debugging.

Definition at line 143 of file settings.hpp.

---

The documentation for this class was generated from the following file:

• static/ssol-iii/include/settings.hpp
